> >>>Battery iPhone 4S
Iphone 4S Battery View larger

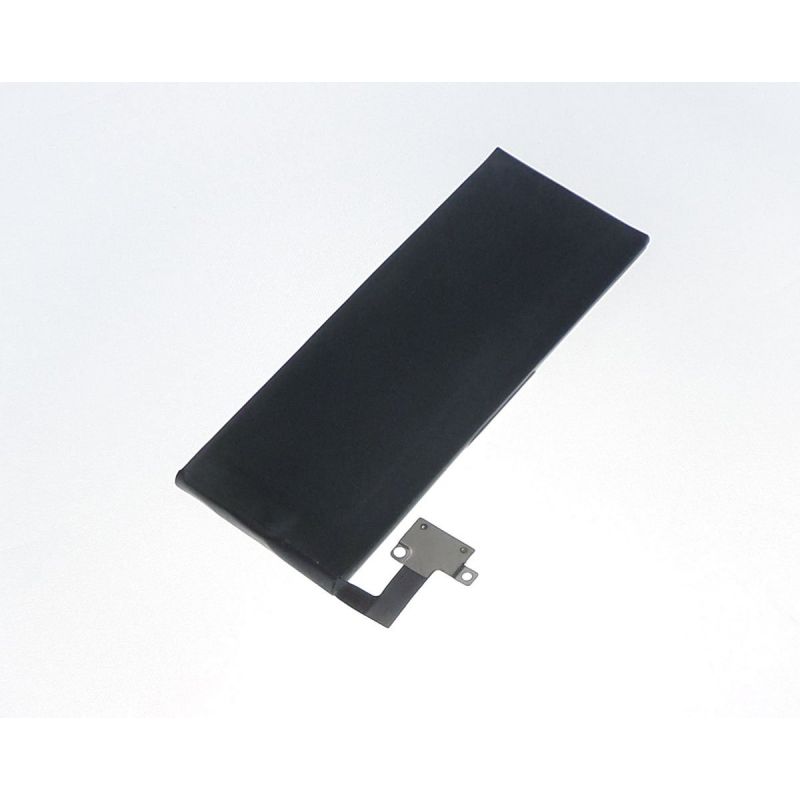

Battery iPhone 4S

PMFR767

New

Battery for Apple Iphone 4S. The endurance of your lithium-ion battery Apple Iphone 4S is widely at the end of its life and it is a harassment? Easy to change with our choice of quality parts.

More details

Videos

Data sheet

Manufacturer Name 616-0579, 616-0580, 616-0581
Manufacturer F412 428
Length 81.1 mm
Width 31.9 mm
Thickness 4.4 mm
Capacity 1440mAh
Operating Voltage 3.7V
Battery technology Li-ion
For what type of breakdown? Typical Battery Charge Problem: The device is no longer charging and the notification LED lights up when I am charging it. The battery does not charge at all even after a full night of charging.

More info

Change battery iPhone 4S

YourIPhone 4S suddenly turns off ? You're tired of the Battery of your iPhone? Want to replace the battery of your iPhone 4S to give it a second youth? Although the batteries of the iPhone 4 and iPhone 4S are similar, they are not interchangeable because of the difference in the connectors. The battery of an iPhone 4 makes 1420 Mah while that of the iPhone 4S is equipped with a capacity of 1430 Mah.
Our experts will bring you the solution adapted to your problem. Follow our tutorial so that you can reach Replace yourself the defective battery of your iPhone 4S . For this you will need an original replacement battery for iPhone 4S as well as a Special opening tool set iPhone 4S .

Remove the rear window of the iPhone 4S

  • Before you begin disassembling your battery, make sure you have turned off your iPhone 4S.
  • Unscrew the two pentalobe screws located underneath your Smartphone. In some iPhone it is cruciform screws.
  • Slide theRear window of your iPhone 4SUp until it moves a fewllimètres.
  • Once disbursed, you can now deposit the Rear window of your iPhone 4S By tilting it upwards.

Remove the battery from the iPhone 4S

  • To remove the battery, unscrew the 2 Phillips screws holding the plug. Once the screws are removed, use your plastic spatula to disconnect the plug. Be careful not to lose the ground tab on the motherboard socket.
  • Pull the plastic tab toward the battery connector to detach the defective battery from the chassis.
  • Once theBattery of your iPhone 4SYou can remove it from its location.

Replace iPhone 4S battery

  • You have succeeded in To remove the defective battery from your iPhone 4S ? You can now replace it with a brand new one.

Remount iPhone 4S

  • ForRemount your iPhone 4SWith the new battery, you just need to follow the instructions in our tutorial in reverse order.

The capacity of the accumulatorLi-ions of your Apple Iphone 4S reduces very quickly? Taking advantage of a total charge of exactly 1440mAh, you will recover all the possibilities of autonomy of your battery, as at the beginning. Replace the battery of your Iphone 4S with this new battery. You can see that a similar battery will be proposed elsewhere by looking for the model code battery (616-0579, 616-0580, 616- 0581 or F412 428) in the search box of our site. The battery of your Apple Iphone 4S no longer works as well as before, you find this annoying on a daily basis? You should change it easily with our choice of quality parts.
