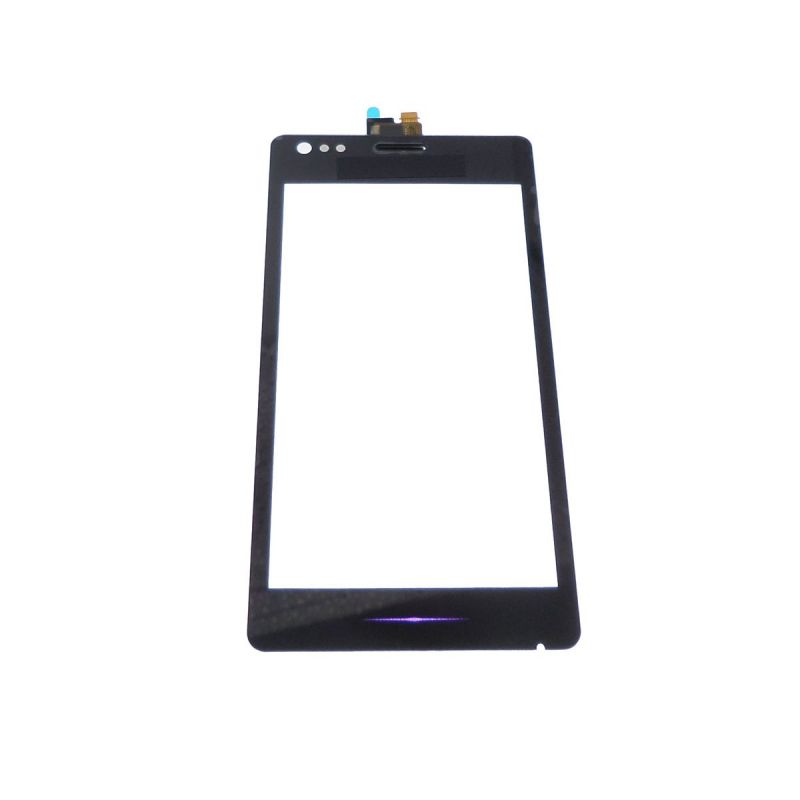

> >>>Touch glass black screen compatible Sony Xperia M C1904 C1905
Touch screen white Sony Xperia M C1904 C1905 View larger

Touch glass black screen compatible Sony Xperia M C1904 C1905

PMFR5670

New

Screen glass touch Black compatible with the Sony Xperia M C1904 C1905.

More details

Videos

Data sheet

Pre-gluing of the glass: No: Not systematic: It is necessary either to recover the old one, or to buy adhesive "quarter rolls 2mm"
For what type of breakdown? Typical Touch Problems: Touch sensitivity fault, the keypad does not respond but the picture works well, can not enter the PIN code, screen that remains frozen on the logo when starting.

More info

Follow our guide to easily perform this repair in less than 15 min! < /.p >

Start by turning off your Xperia M and do not forget to back up all your important data. < /p >

Remove the battery of your Sony cover then the battery and the SIM cards and SD card.

Guide express de dépannage du Xperia M

For this repair will need you a spatula, a means of heat (hair dryer), a Torx T5 screwdriver and a screwdriver Phillips PH00. < /p >

Réparation du Xperia M

Unscrew the Torx T5 screws in red then screw Phillips blue...p >

Réparation du Xperia M

With your spatula and starting with a great length, remove the rear chassis (be careful always to help you in your spatula, never shoot).

Réparation du Xperia M

You can access a the motherboard. < /p >

Réparation du Xperia M

Unclip the top and detachez the main blue tablecloth. The side buttons in red tablecloth is alone defeated. Yellow antenna cable must be second defair.

Réparation du Xperia M

Just now you can undo with your spatula (again once never shoot).

Réparation du Xperia M

Remove the transparent plastic that hides the mechanical lock connector, and raise the arm...p >

Take off the rest of the translucent adhesive and entirely remove the water from the glass.

Réparation du Xperia M

Turn the phone over and heat. < /p >

Réparation du Xperia M

With your spatula, take off the glass by alternating heating and sliding the spatula.

Réparation du Xperia M

That's it...p >
