Data sheet
| Pre-gluing of the glass: | No: Not systematic: It is necessary either to recover the old one, or to buy adhesive "quarter rolls 2mm" |
| For what type of breakdown? | Typical Touch Problems: Touch sensitivity fault, the keypad does not respond but the picture works well, can not enter the PIN code, screen that remains frozen on the logo when starting. |
More info

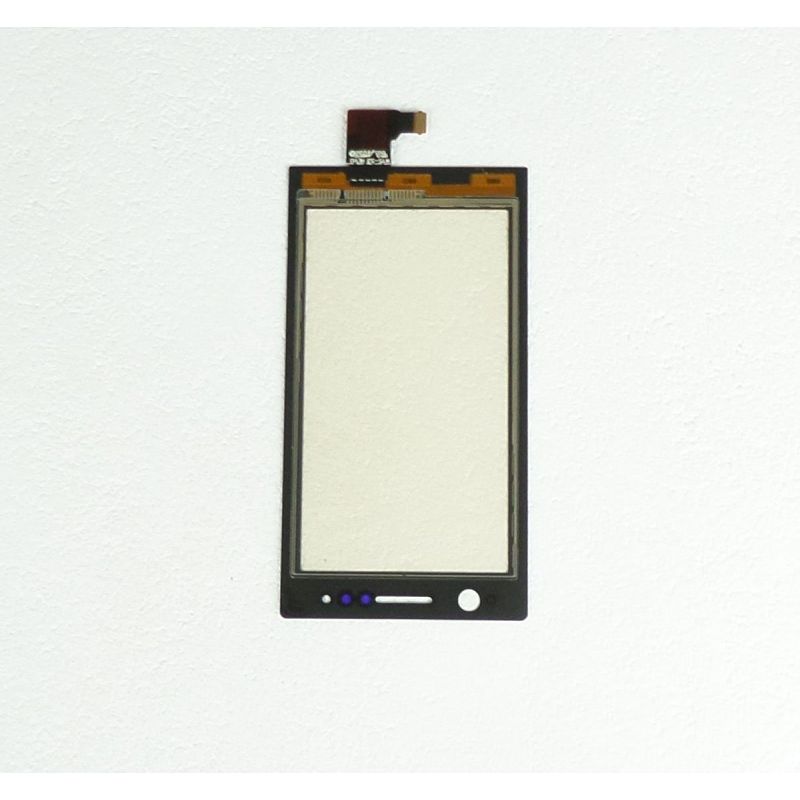

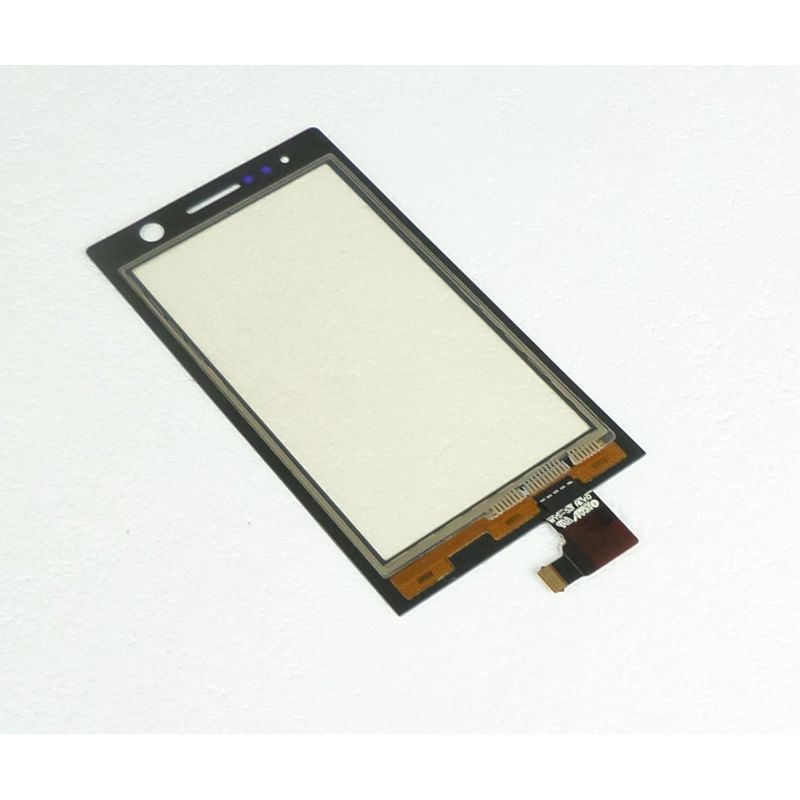

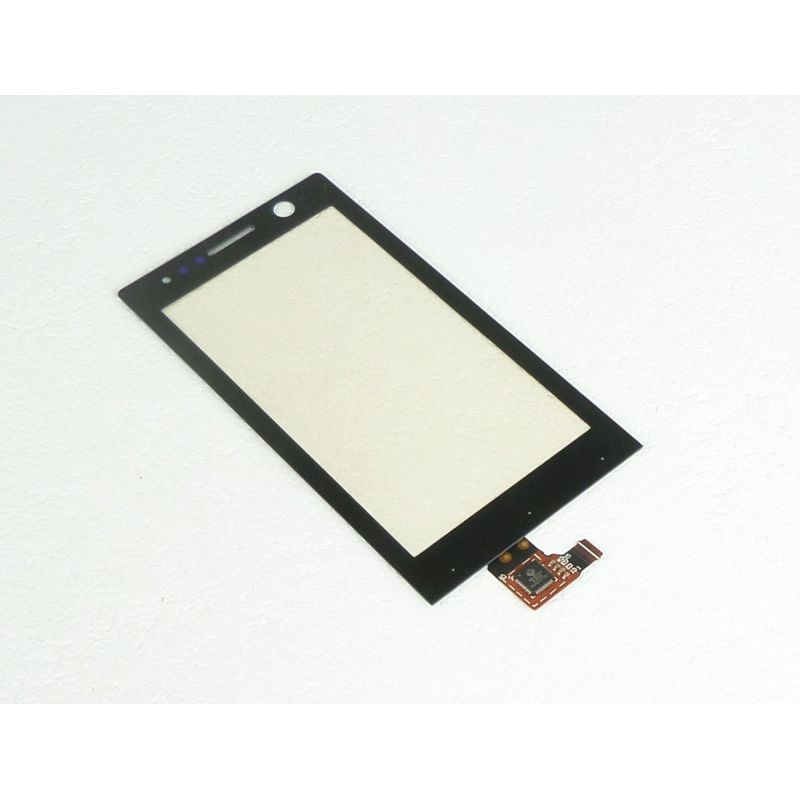

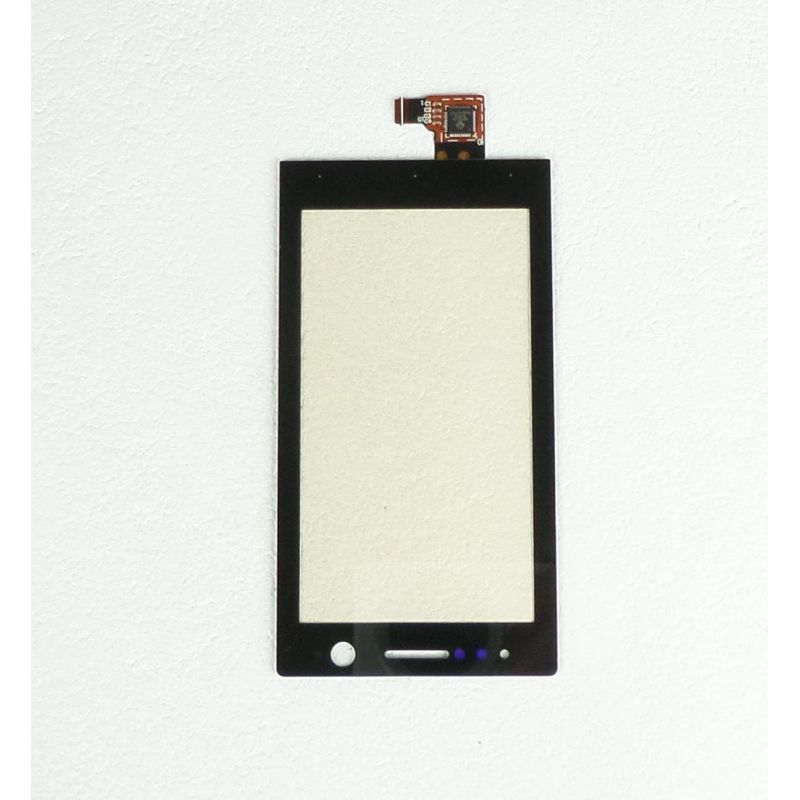

79 Sony Xperia U ST25i compatible touchscreen, to change the slab on the external part of the PDA, over the LCD display. This replacement glass will replace a broken, cracked or scratched touch panel. This Touchscreen is supplied with its new connection cable.
Equivalent to Sony 12619125.
This glass is the best quality possible, and as such we guarantee it for 2 years!
Quick Tutorial:
A complete tutorial is available in the repair guides, we provide you with an overview of the repair to get an overall idea.
First remove the back cover, battery and SIM card from the Sony Xperia U.
Unscrew the screws, there are T5 and T4. Note the locations.
Disassemble the rear chassis.
The motherboard is retained by lugs, to spread with the thumbs holding the phone to the horizontal.
Attention the motherboard of the St25i is always connected by a visible table while lifting delicately.
Unplug the napPe of the glass which is fixed by a connector e lock on the LCD of the Xperia U.
Heat to 250 ° with a final emphasis on the back.
Once you have disassembled the old touch screen, clean the adhesive residue and the LCD.
Place the screen in its position and the tablet of the tactile in its gap.
Remove the protective film from the glass on the LCD side and glue the glass.
When reassembling remember to reconnect the hidden tablet behind the motherboard before reassembling it.
We do not want to remind you that the films of protection of the windows are not destined to remain after repair on them, if possible envisage a protection glass in toughened glass for Xperia U.
